Fiber Optic USB 3.1 AOC-Active Optical Cable,Gen-2,10Gbps,AM to AF,100m
-Fiber Optic USB 3.2 to Type-A Male to Type-A Female Link Cable
-USB 3.2 Gen2 10Gbps
-Practically Zero EMI/RFI profile for flawless performance
-Hybrid Fiber/Copper design requires no external power
-Extend long distance up to 100m
The FUMF-3201 10 Gbps USB 3.2 Gen2 Fiber Optic Extension Cable is an active optical cable supporting extension of USB signals ranging from 2.0 up to the 3.2 Gen 2 spec, meaning this cable can support 10Gbps. Unlike traditional copper cables, this fiber optic cable transmits data using light pulses, minimizing signal loss and achieving flawless performance at up to 100 meters (333ft). With the USB male to female design, you can connect and extend practically any USB peripheral device in seconds.
This FUMF-3201 fiber optic extension cable is designed to address increasing demand of high-speed data transfer over long distances from remote to devices such as PTZ cameras, interactive touchscreens, smartboards and more.
Características destacadas:
- Alto ancho de banda: cumple con los últimos estándares USB 3.2 Gen 2, supervelocidad de hasta 10 Gbps
- Compatible con versiones anteriores: Supports USB 3.0 @ 5Gbps up to 100 meters (328ft), USB 2.0 up to 50 meters (164ft)
- Transmisión de larga duración: Delivers lossles signals over 100m maximum length
- Alta resolución: DisplayPort Alternate Mode support up to 4K resolution
- Fuente de alimentación: Soporta 5V 900mA max al dispositivo remoto
- Fácil instalación: Plug and play para ambos lados, diseño unidireccional
- Construcción duradera: Carcasa de aleación de zinc, conectores chapados en oro resistentes a la corrosión
- Resistencia EMI: Alta resistencia a las interferencias electromagnéticas, lo que garantiza un entorno seguro y libre de radiaciones
- personalizable: Up to 100m maximum length, custom length, logo, and packaging available

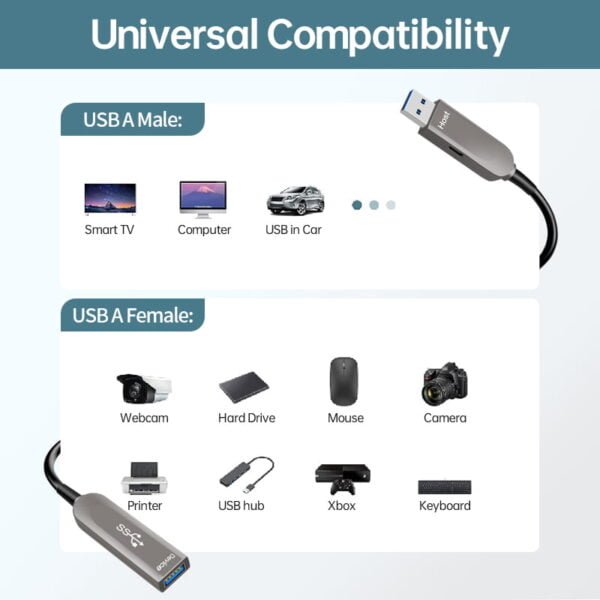

Aplicaciones:
- Enlace de cámara de visión artificial
- Cine en casa, Blu-ray, video 3D, proyector, decodificador, DVR, control de consola de juegos y conexión de monitor
- Equipos de imágenes médicas
- Letreros y monitores LED
- Estación de transmisión de radio y televisión
- Sistema de video a bordo del avión
- Sala de conferencias
- Señalización digital
- Equipo de videoconferencia
- Sistema de monitoreo de seguridad
USB Connector Type References:
| USB 2.0 Type A USB 3.0 Type A USB 3.1 Type A  |
USB 2.0 Type C USB 3.0 Type C USB 3.1 Type C  |
| USB 2.0 Type B
|
USB 3.0 Type B
|
| USB 2.0 Micro B
|
USB 3.0 Micro B
|
| USB 2.0 Mini B USB 3.0 Mini B  |
Warranty: 2-Year Warranty
| Protocolos compatibles | USB 3.1 GEN 2, USB 3.0, USB 2.0 |
|---|---|
| Banda ancha | 10 Gbps |
| Resolución | 2160p y 4K@60Hz |
| Conector A | USB 3.1 tipo A macho |
| Conector B | USB 3.1 tipo A hembra |
| Alojamiento | Material: Aleación de zinc, Color: Turquesa |
| Cable | Cable híbrido de Φ4,0 mm, cubierta de PVC compatible con RoHS |
| Radio de curvatura mínimo | 30 mm |
| Longitud | Hasta 50 metros |
Roberto Benaro –
Allen is professional and patient.
I tried two pieces 30m with my ICY BOX IB-AC6113 13 Ports USB 3.0 Hub with USB charge port. They arrived very quickly and worked perfectly.
I also tested using the 2 cables one plugged into the other (60m total) with the hub, and that works perfectly too.
So I am buying more with longer distances.
Should be a long-term partner.
aoc –
Thanks, Roberto. It’s pleausre to cooperate with you.
