2023-06-088K DisplayPort 1.4 Active Optical Cable-AOC-32.4Gbps
-Compliant with DisplayPort 1.4 specification
-Supports 8K@60Hz, HBR3, HDCP 1.4/2.2, HDR
-8.1 Gbps per channel,maximum bandwidth up to 32.4Gbps
-Supports 8K (7680×4320)@60Hz resolution, 5K (5120×2880)@60Hz, 4K@120Hz, and all previous DisplayPort versions
-Supports 48bit deep color depth
-Low RFI/EMI interference
-Plug and Play
8K DisplayPort 1.4 Active Optical Cable-AOC-32.4Gbps,4K@120Hz/144Hz
Fiber optic technology enables active optical (AOC) cables to transmit ultra-high bandwidth data signals over distances that copper cannot reach. Copper cables struggle to transmit 4K @ 60Hz at 5 meters and have to switch to modular transmitter / receiver extenders to reach greater distances, while all-in-one AOC cables can easily support DisplayPort 1.4 bandwidths of 32.4 Gbps over hundreds of meters. Just connect the two connectors to the HDTV and the source device to get the connection. It therefore represents an excellent solution for home video connections, video games, schools, showrooms and trade fairs.

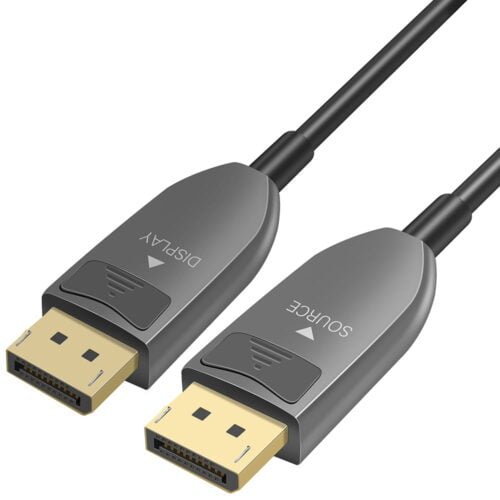

The FDPC-14AA-XX serires DisplayPort 1.4 AOC-Active Optical Cableare provide an ideal solution for various applications requiring uncompromised Ultra High Definition video at extended distances. With a transmission range of up to 150 meters, these cables flawlessly transmit uncompressed, full Ultra HD 8K video signals. The all-in-one cable design eliminates the need for additional components, ensuring a plug-and-play experience without signal loss or degradation. Simply connect the cable between your source and display, and enjoy seamless audio/video transmission. The cable is unidirectional, connecting the source side to the source and the display side to the display.
Highlight Features:
- High-Quality Resolution: Supports 8K (7680×4320)@60Hz resolution, 5K (5120×2880)@60Hz, 4K@120Hz, backward compatible
- High Bandwidth: 32.4Gbps capacity,High Bit Rate 3 (HBR3)
- Lossless Transmission: Delivers 8K@60Hz visuals, VR, and 3D display signals over long distances
- Fast Refresh Rate: 120Hz at 4K resolution for crisp, sharp images; higher rates at lower resolutions
- Dynamic HDR: Optimizes contrast, depth, brightness, and color gamut on a frame-by-frame basis
- Enhanced eARC: Simplifies connectivity and audio optimization for multiple components
- High-Quality Audio: Supports up to 192kHz, 24-bit, uncompressed 5.1 and 7.1, Dolby lossless formats, and 32-channel audio
- VRR for Gaming: Fluid gameplay with minimal lag, judder, and frame tearing
- Advanced Features: Supports EDID, self-detecting function, ALLM, QMS, and QFT
- Durable Construction: Zinc-alloy housing, corrosion-resistant gold-plated connectors
- EMI Resistance: High resistance to electromagnetic interference, ensuring a safe, radiation-free environment
- Customizable: Up to 70m maximum length (30m max for eARC), custom length, logo, and packaging available
Applications:
- LED Digital signage
- Home Theater Applications (Blue-Ray, 3D Video, Projectors, DVR, Game Consoles and Computers)
- Medical imaging equipment
- Airport boarding video information system
- Security monitoring system
- Conference Room Video Equipment
- TV Broadcast Station
Interface Version | DisplayPort 1.4 |
---|---|
Power Consumption | 250mW |
Connector A | 20-Pin, DisplayPort 1.4 Male, 24K Gold-plated Copper, Latching |
Connector B | 20-Pin, DisplayPort 1.4 Male, 24K Gold-plated Copper, Latching |
Housing | Material: Zinc Alloy, Dimensions: 45*19.5*13mm, Color: Gray |
Cable | Φ4.8mm Hybrid Cable,TPU Jacket |
Resolution | 8K@60Hz, 4K@144Hz, 4K@120Hz,HDCP 1.4/2.2 |
Bandwidth | 32.4Gbps(8.1 Gbps x 4Channel) |
Audio | eARC, Dolby® Atmos,DTS:X, LPCM 7.1 audio, Dolby® Digital Plus,Dolby®, TrueHD, and DTS-HD® Master Audio™ |
Video | 3D , CEC , HDCP , HEC (HDMI Ethernet Channel), SDTV (480i/p), Ultra HD 4K (2160i/p) , Ultra HD 8K (4320i/p) |
Length | Up to 150 meters |
