8K Fiber Optic HDMI 2.1 AOC-Active Optical Cable-AM to AM,48Gbps

The FHDC-21AA-XX serires 8K Fiber Optic HDMI 2.1 AOC-Active Optical Cables are also called HDMI 2.1 AOC, HDMI 2.1 Active Optical Cable, Fiber Optic HDMI Cable, Optical HDMI Cable, Active HDMI Cable, Active HDMI 2.1 Cable, Active Optical HDMI Cable.

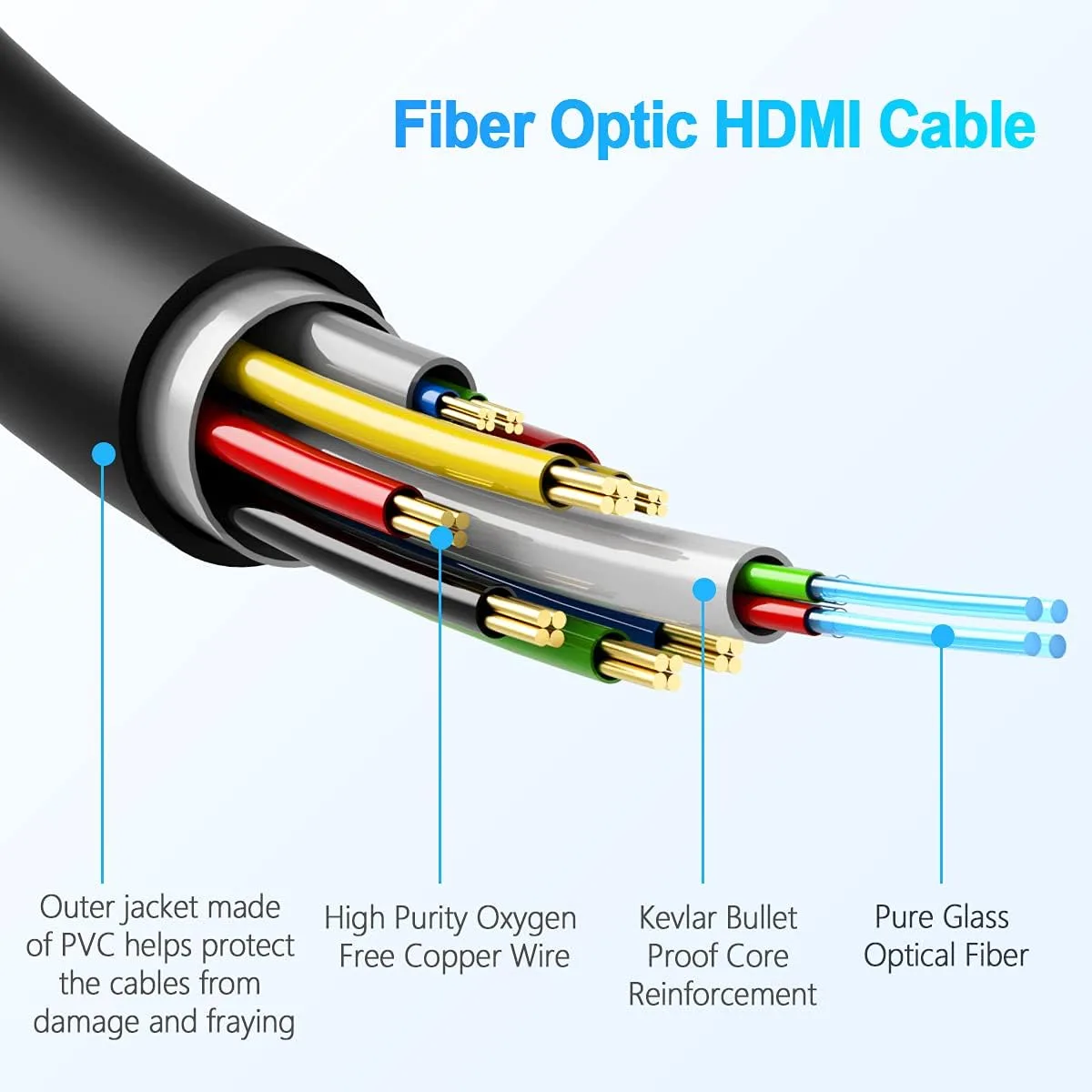

Crafted with high-quality hybrid optical fiber cable (4 Fiber & 7 Copper), the 8K Active Fiber Optic HDMI 2.1 Cables offer unmatched transmission capabilities. With a maximum data rate of 48Gbps, these cables deliver Ultra High Speed performance, ensuring pristine visual quality with resolutions up to 8K (7680 x 4320p) at 60 Hz and a smooth refresh rate of 144Hz. Experience the full spectrum of colors with 4:4:4 , and enjoy enhanced features like HDR and eARC, all without any signal loss, even over long distances.

Designed for durability and reliability, the 8K Active Fiber Optic HDMI 2.1 Cables feature an industrial-grade TPU jacket. This jacket provides exceptional protection and enables these cables to operate flawlessly in a wide temperature range, from -40℃ to +80℃. With this rugged construction, these cables are ideal for demanding environments such as Medical Surgeries, Live Events Rental, Military applications, Shipboard installations, Temporary Staging, or any scenario that demands extended HDMI connectivity in challenging conditions.

Highlight Features:

• High-Quality Resolution: Supports 8K@60Hz, 4K@144Hz, 4K@120Hz as per HDMI 2.1 specifications, backward compatible
• High Bandwidth: 48Gbps capacity, backward compatible
• Lossless Transmission: Delivers 8K@60Hz visuals, VR, and 3D display signals over long distances
• Fast Refresh Rate: 120Hz at 4K resolution for crisp, sharp images; higher rates at lower resolutions
• Dynamic HDR: Optimizes contrast, depth, brightness, and color gamut on a frame-by-frame basis
• Enhanced eARC: Simplifies connectivity and audio optimization for multiple components
• High-Quality Audio: Supports up to 192kHz, 24-bit, uncompressed 5.1 and 7.1, Dolby lossless formats, and 32-channel audio
• VRR for Gaming: Fluid gameplay with minimal lag, judder, and frame tearing
• Advanced Features: Supports EDID, self-detecting function, ALLM, QMS, and QFT
• Durable Construction: Zinc-alloy housing, corrosion-resistant gold-plated connectors
• EMI Resistance: High resistance to electromagnetic interference, ensuring a safe, radiation-free environment
• Customizable: Up to 200m maximum length (30m max for eARC), custom length, logo, and packaging available

Applications:

• Digital signage
• LED signs & monitors for stadiums,hospitals,shipping malls
• Medical imaging equipment
• Airport boarding video information system
• Home Theater, Blu-ray, 3D video, projector, set-top box, DVR, game console control and monitor connection
• Radio and TV station
• Video conference equipment
• Security monitoring system
