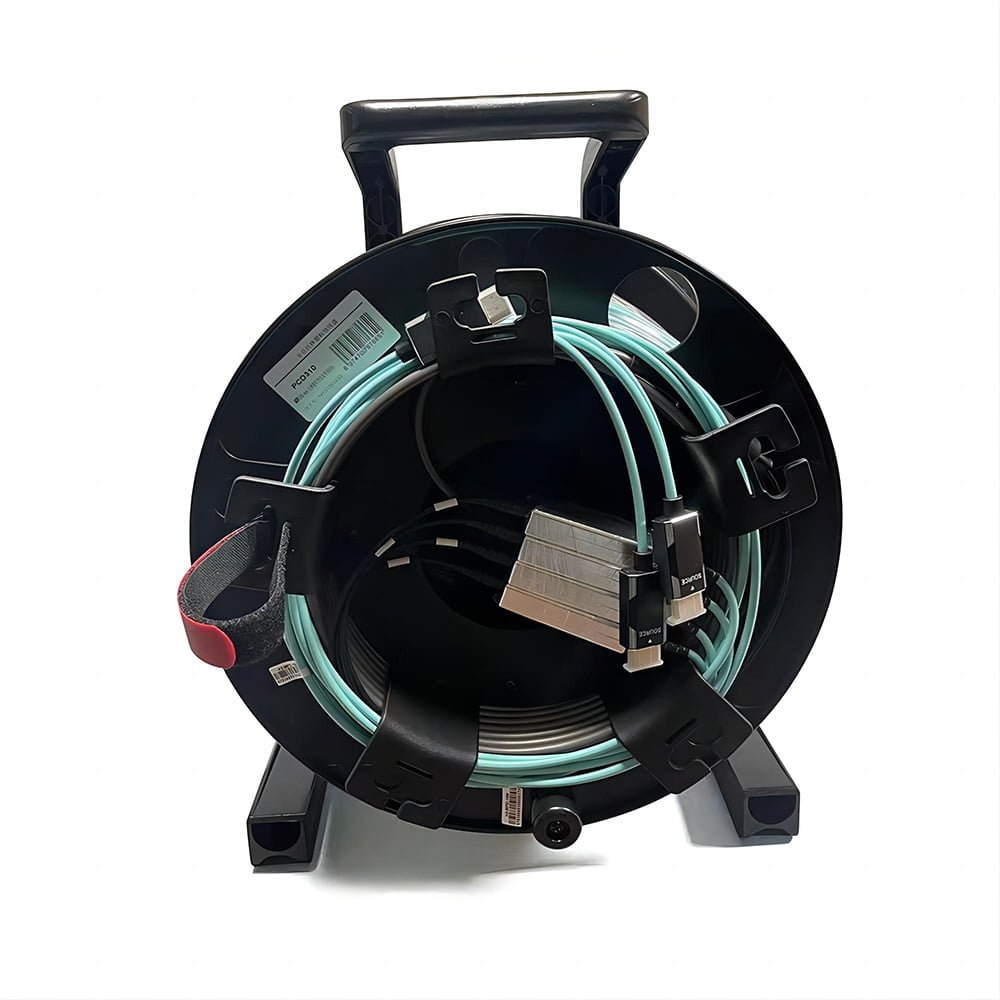

Four-In-One Armored 8K Fiber Optic HDMI2.1 Extension Cable on Roxtone drum
-Rectractable & Durable design with Roxtone PCD drums & protection caps;
-Four sets 1.5 Meters long detachable snap-on MPO to HDMI cable on each side;
-Extend full 7680 x 4320(8K), 4096 x 2160 (4K), 3840 x 2160 (2K) at 60Hz 4:4:4 video signals
-Fully supports HDMI 1.4, 2.0 & 2.1 spec, including eARC, 21:9 Aspect Ratio and more
-PCM, DTS-HD Master and Dolby Digital True HD Surround Sound compatible
-Pure fiber transmits EMI-Free singnal up to 500m for 4K/60P
-Supports HDCP 2.2 / EDID / DDC / CEC
-Custom MPO jumper cable length up to 500m
Four-In-One Armored 8K Fiber Optic HDMI2.1 MPO Extension Cable Reel
Four-In-One Armored 8K Fiber Optic HDMI2.1 MPO Extension Cable,on Roxtone PCD cable drum
aocfiberlink-audio-visual-solution
The FPHD-K2104 Armored Four-In-One 8K Fiber Optic HDMI2.1 MPO Extension Cable drum is a game-changer for 8K HDMI signal transmission, especially for live events organizers & rental service providers and video producers to solve the pain points below:
- Frustrated by the hefty shipping bills for multiple HDMI cable reels ?
- Tired of replacing entire reels for one faulty HDMI head?
- Worried about signal quality and distance?
- Fret about multiple MEDIA CONVERTER power supplies ?
This Four-In-One 8K Pure Fiber Optical HDMI Extension Cable Drum comes with following accessories:
- 1x stainless steel armored, TPU sheathed, 24-core Fiber Optic Jumper Cable with MPO connections on both terminations as extension interfaces;
- 1x Roxtone PCD 235/310/380 portable cable drum with winder & protection caps;
- 4x detachable 8K Fiber Optic HDMI 2.1 to MPO AOC Cable for Source side;
- 4x detachable MPO to 8K Fiber Optic HDMI 2.1 AOC Cable for Display side (with external USB-A 2.0 Power Supply)
Detachable 8K Fiber Optical HDMI 2.1 Extension Cable
Crafted with high-quality 24-core OM3 pure fiber optical cable, this 8K Fiber Optical HDMI Cable are designed to extend the transmission distance between data source and display devices with a maximum length of 500 meters for 4K/120p HD & 200 meters for 8K/60p UHD, which offer unmatched transmission capabilities with a maximum data rate of 48Gbps.

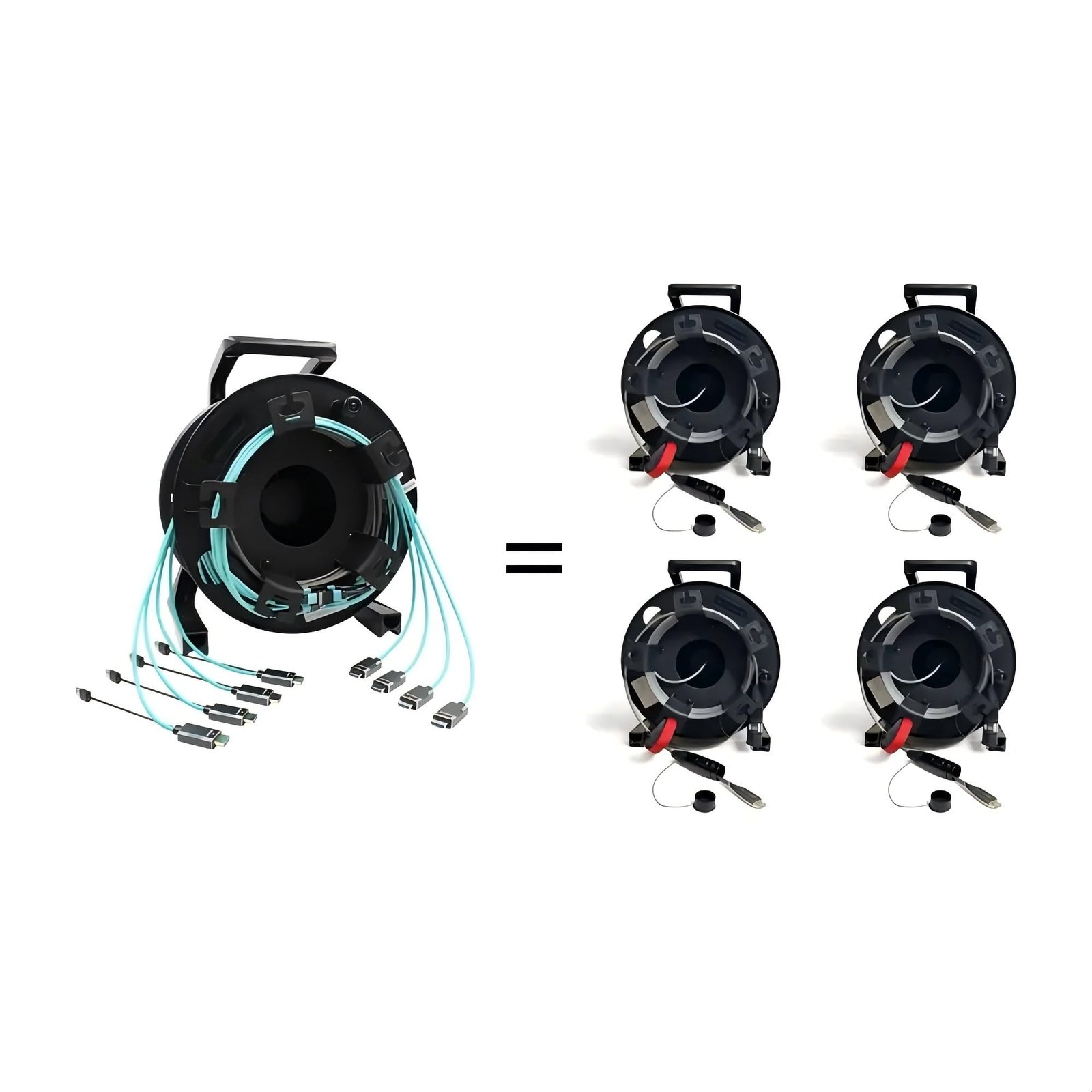

Supplied with detachable 8K Fiber Optical HDMI AOC cables for the source and display sides, you can easily send the HDMI connecions for repairing or for easy replacement when any of the HDMI connection fails to work. You don’t need to send the whole cable again or even throw the whole cable for just one connection broken. Four-In-One design also saves space and transportation cost.
It’s indeed an ideal alternative replacement for #Klotz FOAUHW, #Kramer CRS-PlugNView,#TechLogix Networx MOFO-HD20ST, #Tripplite #Eaton P568FA series Armored High-Speed Optical HDMI Cable on portable but unbreakable drum reel.

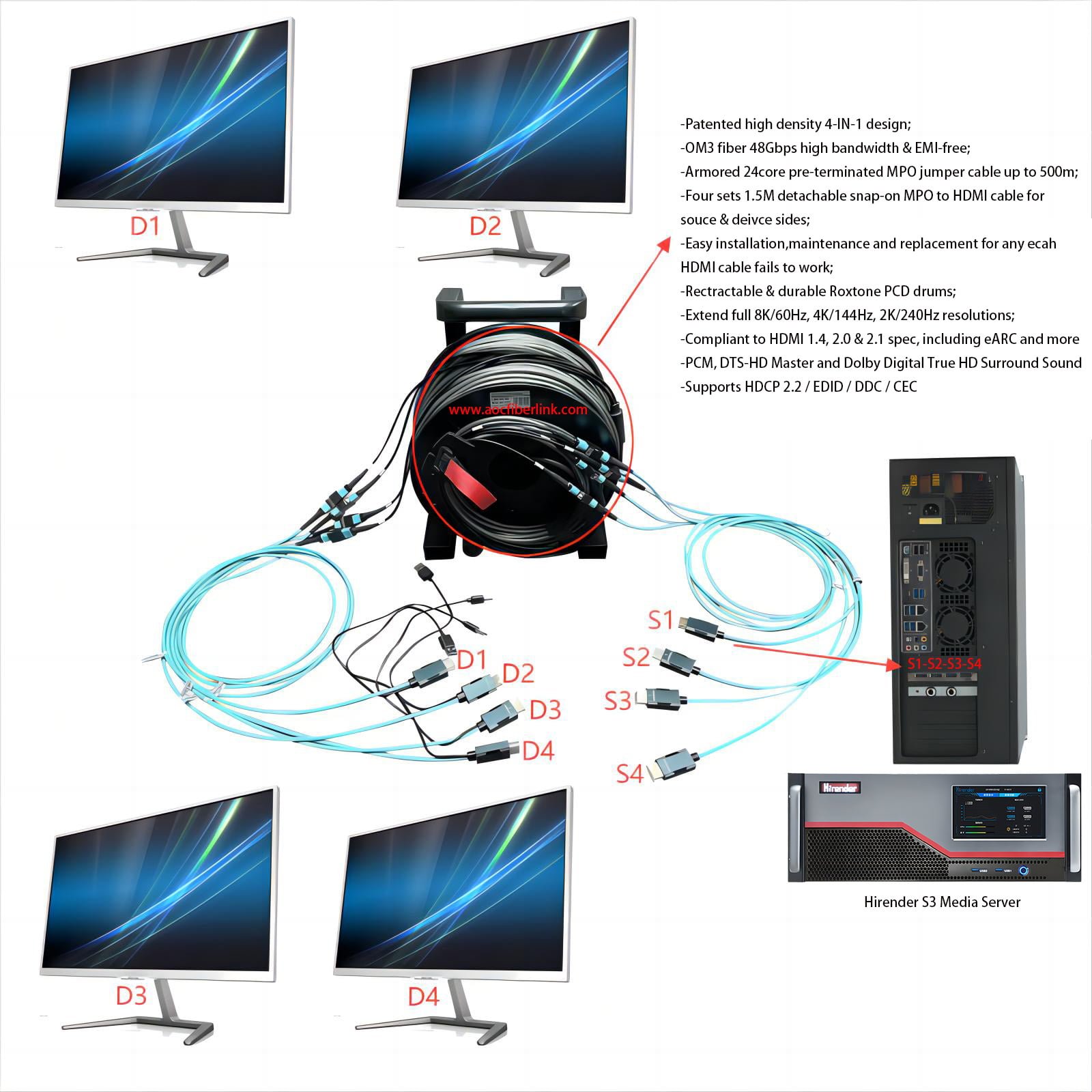

4-IN-1 Armored 8K Fiber Optic HDMI2.1 Extension Cable drum
Highlight Features:
- Super Transmission Distance: custom length up to 500 meters for 4K/120p HD & 200 meters for 8K/60p UHD;
- Easy maintenance with replaceable junction HDMI AOC Cables;
- Cost saving up to 80%;
- Ideal replacement: for Klotz FOAUHW,Kramer CRS-PlugNView,TechLogix Networx MOFO-HD20ST,Tripplite #Eaton P568FA series
- Compact & Durable Design: Four-In-One design saves space, Durable Aluminum/Steel Construction for less than 25 Lbs; Stackable Frame Design; Protection Caps Included;
- Compliant with HDMI 1.4, 2.0 and 2.1 specification;
- High Bandwidth: 48Gbps capacity, ensuring fast and reliable transmission of multimedia content
- Lossless Transmission: Pure fiber delivers 8K/60p and 4K/120p visuals, VR, and 3D display signals over long distances
- Dynamic HDR: Optimizes contrast, depth, brightness, and color gamut on a frame-by-frame basis
- Enhanced eARC: Simplifies connectivity and audio optimization for multiple components
- High-Quality Audio: Supports up to 192kHz, 24-bit, uncompressed 5.1 and 7.1, Dolby lossless formats, and 32-channel audio
- VRR for Gaming: Fluid gameplay with minimal lag, judder, and frame tearing
- Advanced Features: Supports EDID, self-detecting function, ALLM, QMS, and QFT
- EMI Resistance: High resistance to electromagnetic interference, ensuring a safe, radiation-free environment
- Customizable: Up to 500m maximum length (30m max for eARC), custom length, logo, and packaging available
Applications:
- Digital signage
- LED display and walls
- Medical imaging equipment
- Airport boarding video information system
- Home Theater, Blu-ray, 3D video, projector, set-top box, DVR, game console control and monitor connection
- Radio and TV station
- Video conference equipment
- Security monitoring system
- Media Server, Live Production System,Video Creation System and Switchers that have DP1.4 or HDMI 2.0/2.1 in/out interface
Blog: Seven Advantages of choosing FPHD-K2104 Four-In-One Armored 8K Fiber Optic HDMI 2.1 Extension Cable on Roxtone drum reel
| Interface Version | HDMI 2.1 |
|---|---|
| Power Consumption | 500mW |
| Connector A | HDMI 2.1 Type-A (M) to MPO(M) |
| Connector B | HDMI 2.1 Type-A (M) to MPO(M) |
| Housing | Material: Zinc Alloy, Dimensions: 45*19.5*13mm, Color: Gray |
| Cable | Φ3.0mm OM4 Pure Fiber Optical Cable,RoHS compliant |
| Resolution | 4K@120 / 8K@60 / 10K@30 |
| Bandwidth | 48Gbps |
| Audio | eARC, LPCM 7.1 audio, Dolby® Digital Plus,Dolby® TrueHD, and DTS-HD® Master Audio™ |
| Color Depth | 30/36/48-bit |
| Length | Up to 500 meters |
