Detachable 8K Fiber Optical HDMI 2.1-MPO Extender
- -5 feet(1.5m) detachable HDMI 2.1 MPO connection for Source
- -5 feet(1.5m) detachable HDMI 2.1 MPO connection for Display
- -Pure Fiber Optic transmission for EMI-free & no lantency connection
- -Full Compatibility with any legacy HDMI TMDS up to HDMI 2.1 FRL 48gigabit/s full speed
- -Full Compatibility with any legacy HDCP up to HDCP 2.3 or Higher
- -Backwards compatible with HDMI 2.0/1.4/1.3
- -Supports any resolution including SD HD 3D 4K 8K 10k
- -Supports all frames rates including 4K@30 4K@60 4K@120Hz 4K@144Hz 8K@60Hz
- -Supports DSC 4K@240Hz
- -Supports 4K@144Hz 4:4:4 uncompressed
- -Full 4:4:4 HDR10+ Uncompressed (HDMI 2.1 Standard FRL 48gigabit full speed)
- -Dolby Atmos, THX, TRUE-HD, object-based audio, uncompressed 5.1 and 7.1, and 32-channel uncompressed audio
- -Full Specs HDMI 2.1 including DSC, ALLM, QFT, QMS, VRR, Dynamic HDR
- -Customized length up to 1000ft(300m)
8K Fiber Optical HDMI-MPO Extender Kit

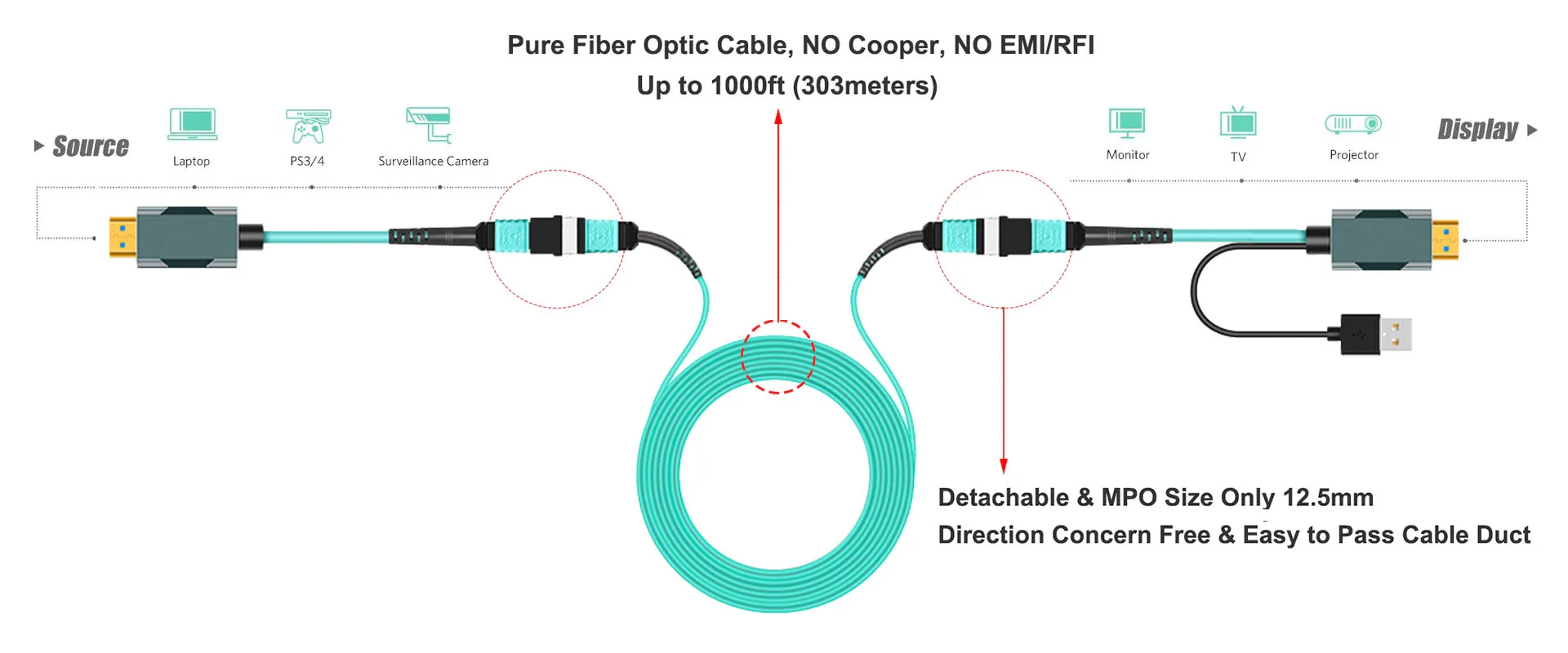

The FPHC-2101 8K Fiber Optical HDMI 2.1 Extender Kit is one of AOCFIBERLINK‘s cutting-edge 8K HDMI singal tranmission member, which revolutionizes ProAV and installer practices. Its slim, flexible fiber optic design simplifies in-wall cable installations significantly. Moreover, the MPO extender facilitates effortless upgrades, eliminating the need to redo wiring or reinstall previously placed cables. This innovation streamlines installation processes, making it a game-changer for professionals in the audiovisual industry.
Why Choose AOCFiberlink
Ultra High Speed
Premium Zinc Alloy Shell

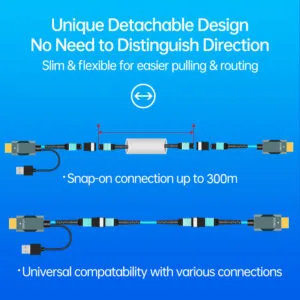

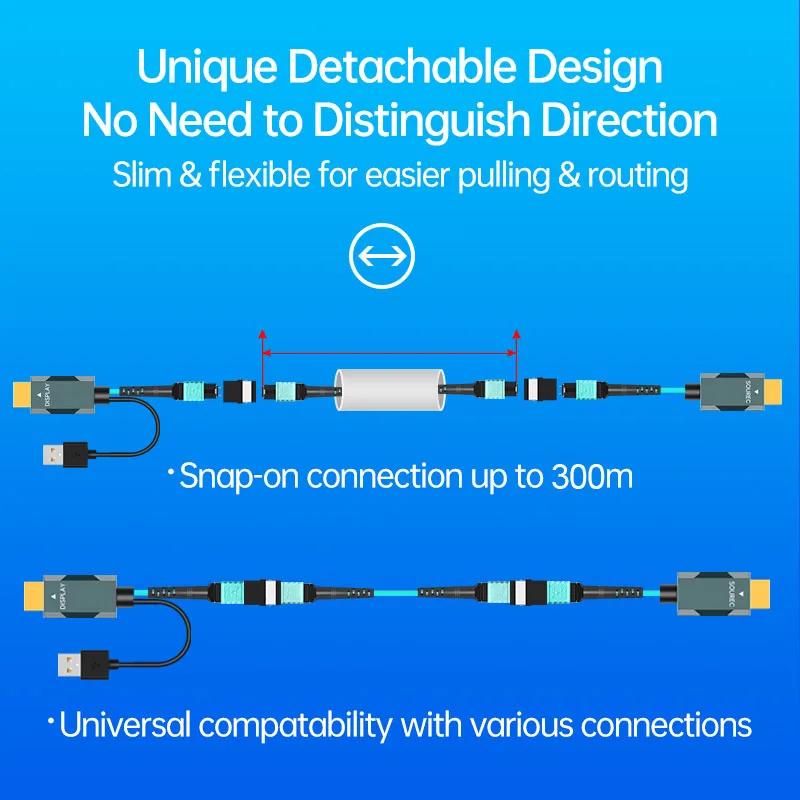

Flexible Cable Routing
Detachable HDMI Ends
Pre-terminated MPO Connector
Universal Compatability
Unmatched Performance
4K/144Hz 8K/60Hz HDMI 2.1
4:4:4 full quality AV experience over fiber optics.

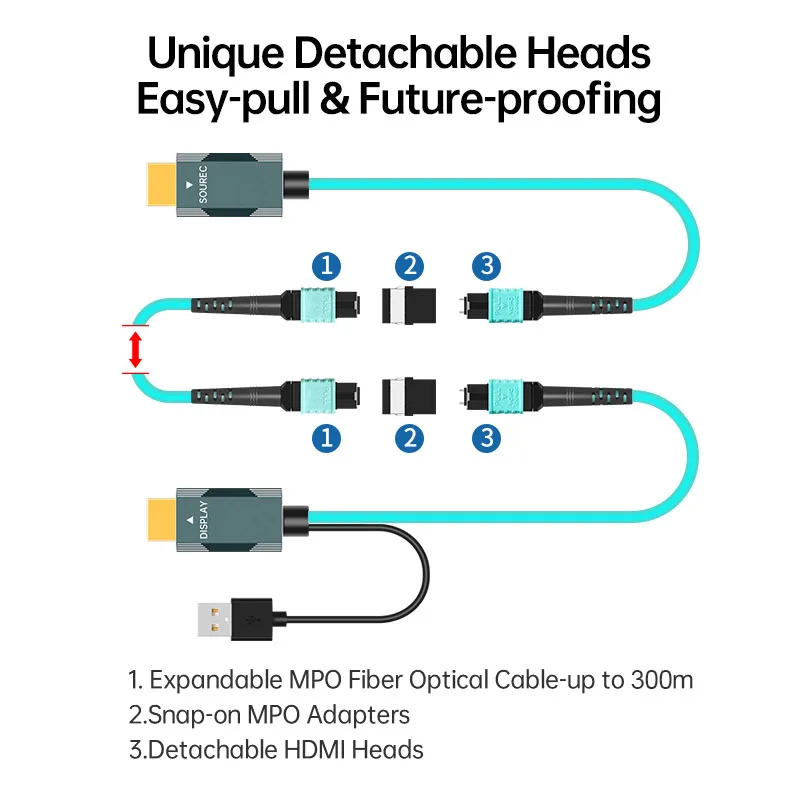

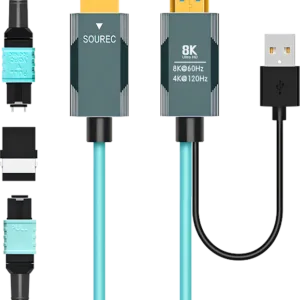

What's in the kit ?
This 8K Pure Fiber Optic HDMI MPO Extension Cable comes with following accessories:

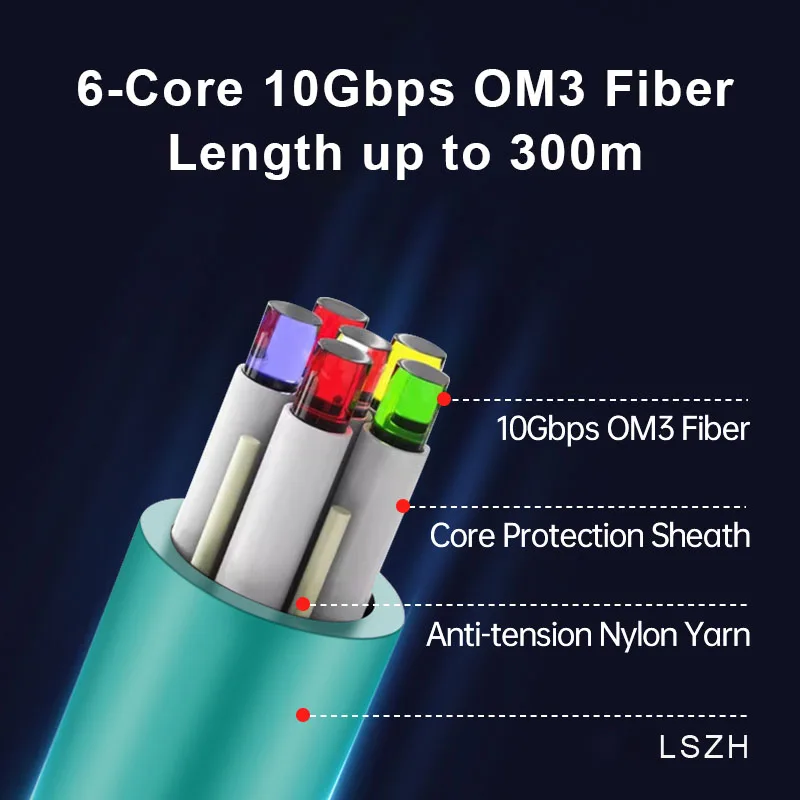

- 1x stainless steel armored, LSZH sheathed, 6-core OM3 Fiber Optic Extension Cable with pre-terminated MPO connections on both ends;
- 1x 5ft(1.5m) detachable 8K HDMI 2.1 to MPO AOC Cable for Source side;
- 1x 5ft(1.5m) detachable MPO to 8K HDMI 2.1 AOC Cable for Display side (with external USB-A 2.0 Power Supply)
- 2x MPO Adapters
Downloads
| Interface Version | HDMI 2.1 |
|---|---|
| Power Consumption | 500mW |
| Connector A | HDMI Type-A (M) to MPO(M) |
| Connector B | HDMI Type-A (M) to MPO(M) |
| Housing | Material: Zinc Alloy, Dimensions: 45*19.5*13mm, Color: Gray |
| Cable | Φ3.0mm Armored Pure Fiber OM3 Cable for extension |
| Resolution | 4K@144Hz,8K@60Hz,10K@30Hz |
| Bandwidth | 48Gbps(12 Gbps x 4Channel) |
| Audio | eARC, LPCM 7.1 audio, Dolby® Digital Plus,Dolby® TrueHD, and DTS-HD® Master Audio™ |
| Color Depth | 30/36/48-bit |
| Length | Up to 1000ft(300m) |
