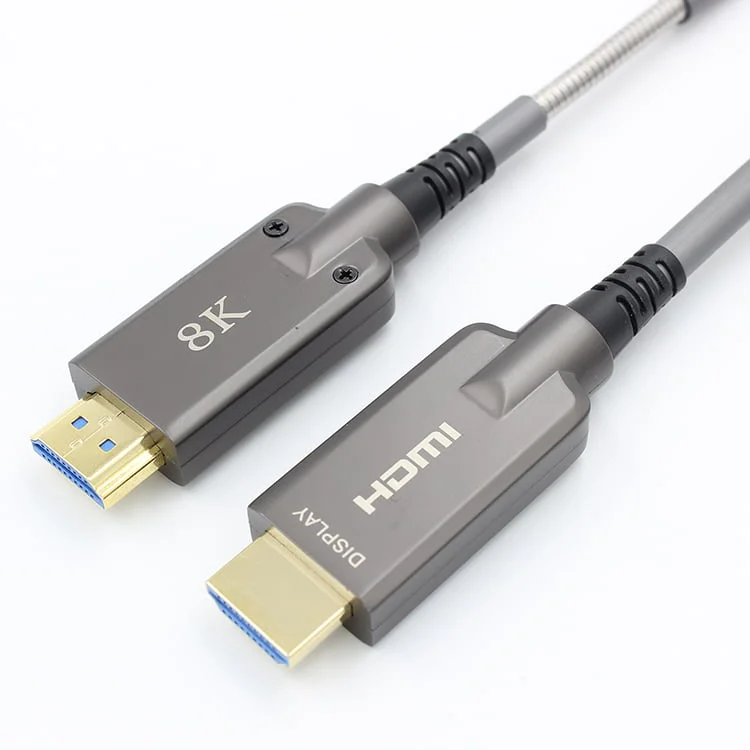

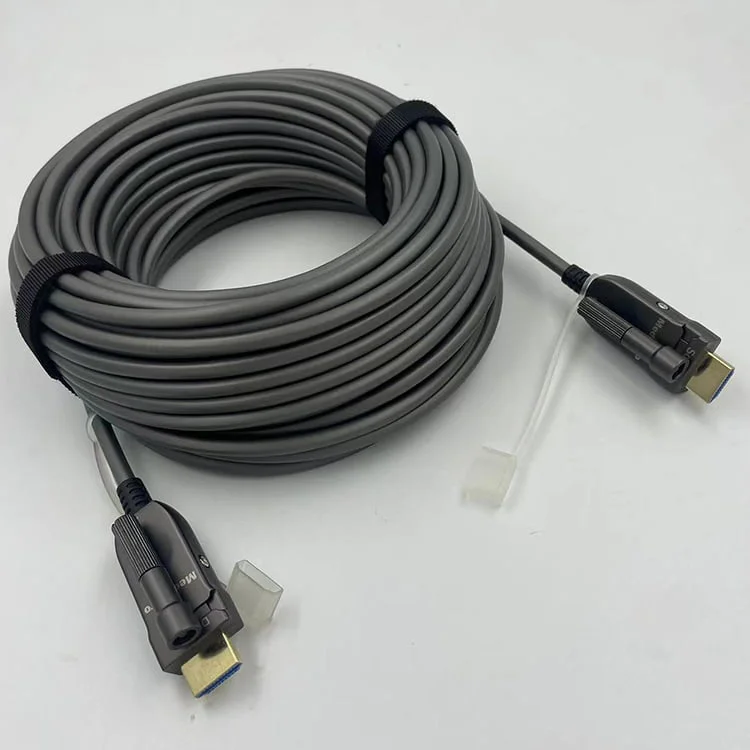

Fiber Optic HDMI 2.1 AOC-Active Optical Cable-Armored-8K@60Hz 48Gbps
-Optional screw locking for secure connection;
-Unparalleled 8K 60Hz definition, 48Gbps bandwidth;
-Maximum 240Hz ideal for immersive entertainment;
-Optical / Electrical solution for lossless transmission;
-200CU stainless steel construction
-Crush Resistance: Long term100kg ; Short term 200kg

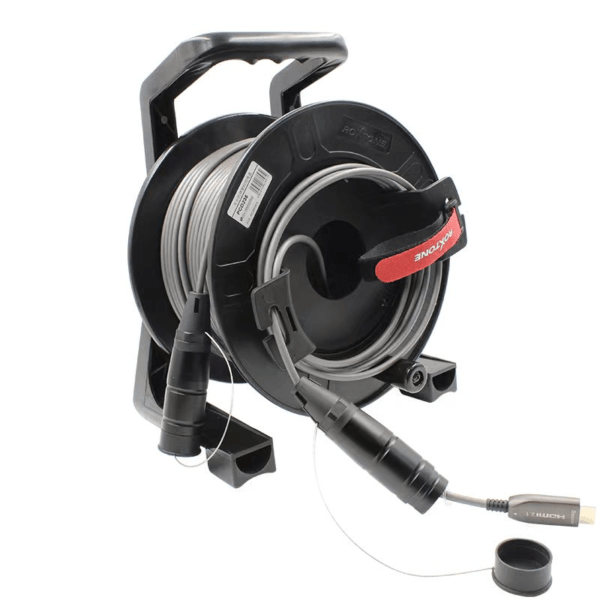

-Up to 150m length, Roxtone cable drum optional
The FHDA-21AA-XX serires Armored HDMI 2.1 AOC-Active Optical Cable with screw locking optional are also called HDMI 2.1 AOC, HDMI 2.1 Active Optical Cable, Fiber Optic HDMI Cable, Optical HDMI Cable, Active HDMI Cable, Active HDMI 2.1 Cable, Active Optical HDMI Cable.

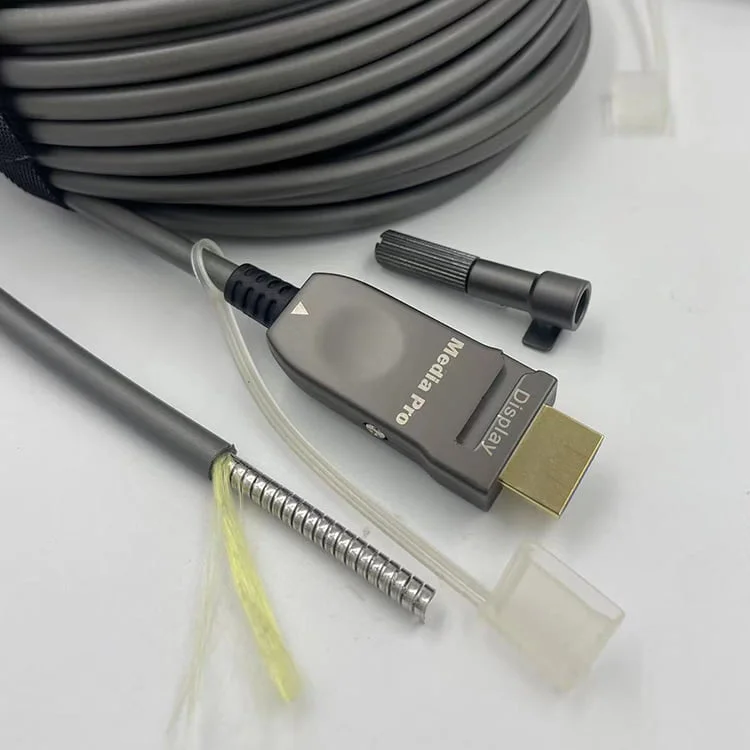

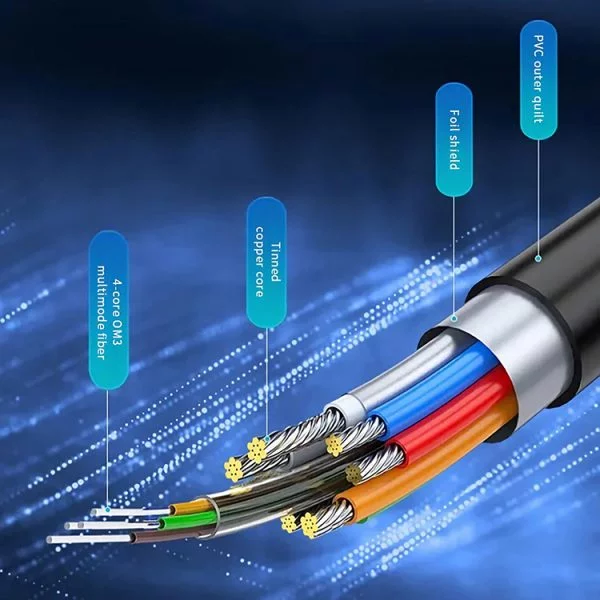

Constructed with high-quality stainless steel and reinforced hybrid optical fiber cable (4 Fiber & 7 Copper), featuring a lockable HDMI 2.1 connector for use with BHDBT Series HDBaseT Extender products, this Armored Locking HDMI 2.1 AOC-Active Optical Cables offer exceptional durability and resilience and secure connections. With a crush-resistant armor capable of withstanding up to 500kg of force, these cables are designed for demanding environments. The industrial-grade TPU jacket provides a wide operating temperature range (-40℃ to +80℃), making them perfect for use in challenging settings like Medical Surgeries, Live Events Rental, Military, Shipboard, Temporary Staging, or anywhere that requires extended HDMI cables in tough conditions.
Highlight Features:

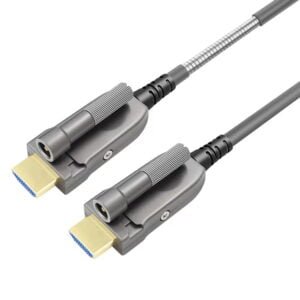

- Secure Connection: Optional screw locking to ensures a secure connection, preventing signal loss due to cables getting bumped and disconnected
- High-Quality Resolution: Supports 8K@60Hz, 4K@144Hz, 4K@120Hz as per HDMI 2.1 specifications, backward compatible
- High Bandwidth: 48Gbps capacity, backward compatible
- Lossless Transmission: Delivers 8K@60Hz visuals, VR, and 3D display signals over long distances
- Fast Refresh Rate: 120Hz at 4K resolution for crisp, sharp images; higher rates at lower resolutions
- Dynamic HDR: Optimizes contrast, depth, brightness, and color gamut on a frame-by-frame basis
- Enhanced eARC: Simplifies connectivity and audio optimization for multiple components
- High-Quality Audio: Supports up to 192kHz, 24-bit, uncompressed 5.1 and 7.1, Dolby lossless formats, and 32-channel audio
- VRR for Gaming: Fluid gameplay with minimal lag, judder, and frame tearing
- Advanced Features: Supports EDID, self-detecting function, ALLM, QMS, and QFT
- Durable Construction: Zinc-alloy housing, corrosion-resistant gold-plated connectors
- EMI Resistance: High resistance to electromagnetic interference, ensuring a safe, radiation-free environment
- Customizable: Up to 150m maximum length (30m max for eARC), custom length, logo, and packaging available
Applications:
- Digital signage
- LED signs & monitors for stadiums,hospitals,shipping malls
- Medical imaging equipment
- Airport boarding video information system
- Home Theater, Blu-ray, 3D video, projector, set-top box, DVR, game console control and monitor connection
- Radio and TV station
- Video conference equipment
- Security monitoring system
| Interface Version | HDMI 2.1 |
|---|---|
| Power Consumption | 250mW |
| Connector A | Screw Locking HDMI Type-A Male |
| Connector B | Screw Locking HDMI Type-A Male |
| Housing | Material: Zinc Alloy, Dimensions: 45*19.5*13mm, Color: Gray |
| Cable | Φ6.0mm Armor Hybrid Cable, OM3 fiber, TPU Jacket, Kevlar filling |
| Crush Resistance | Long term100kg |
| Resolution | 8K@60Hz, 4K@144Hz, 4K@120Hz,HDR |
| Bandwidth | 48Gbps(12 Gbps x 4Channel) |
| Audio | eARC, Dolby® Atmos,DTS:X, LPCM 7.1 audio, Dolby® Digital Plus,Dolby®, TrueHD, and DTS-HD® Master Audio™ |
| Video | 3D , CEC , HDCP , HEC (HDMI Ethernet Channel), SDTV (480i/p), Ultra HD 4K (2160i/p) , Ultra HD 8K (4320i/p) |
| Length | Up to 150 meters |
